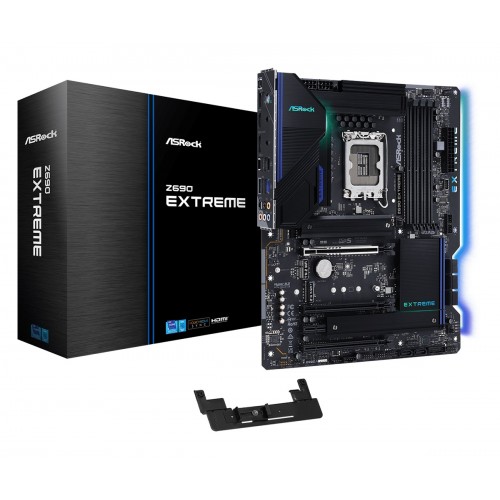

ASRock Z690 Extreme 12th Gen ATX Motherborad

Specification Basic Information Supported CPU – Supports 12th Gen Intel Core Processors (LGA1700) – Digi Power design – 13 Power Phase design – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology Chipset Intel Z690 BIOS – 256Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, 1.05V PROC, 1.8V PROC, 0.82V PCH, 1.05V PCH Voltage Multi-adjustment Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 2oz Copper PCB Audio – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Pure Power-In – Direct Drive Technology – PCB Isolate Shielding – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15μ Gold Audio Connector – Nahimic Audio Expansion Slots PCI – 3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE2); triple at Gen5x16 (PCIE1) / Gen4x4 (PCIE2) / Gen3x4 (PCIE4)) – 1 x PCIe Gen3x1 Slot – Supports AMD Quad CrossFireX and CrossFireX – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) – 15μ Gold Contact in VGA PCIe Slot (PCIE1) M.2 Socket – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices Memory Type DDR4 Slots 4 x DDR4 DIMM Slots Supported Memory Supports DDR4 non-ECC, un-buffered memory up to 5000 (OC) – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots Maximum Memory 128GB Graphics Graphics – Intel Xe Graphics Architecture (Gen 12) – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @60Hz / 5K (5120×3200) @120Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports Connector & Ports HDMI 1 x HDMI Port Display Port (s) 1 x DisplayPort 1.4 USB (s) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) LAN Port (s) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports UEFI PXE Wireless Communication module Supports ECC UDIMM memory modules (operate in non-ECC mode) Supported Storage – 8 x SATA3 6.0 Gb/s Connectors – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/ 2242/ 2260/ 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode Audio – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) Internal I/O Ports – 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Button TPM (Trusted Platform Module ) 1 x SPI TPM Header Others Special Features ASRock USB 3.2 Gen2 – ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 60A Power Choke – 60A SPS (Smart Power Stage) – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Shaped PCB Design – Matte Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB 2.5G LAN 802.11ax Wi-Fi 6E ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) Bundled Software Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC – Supports Dragon 2.5G LAN Software Warranty Information Manufacturing Warranty 3 years
