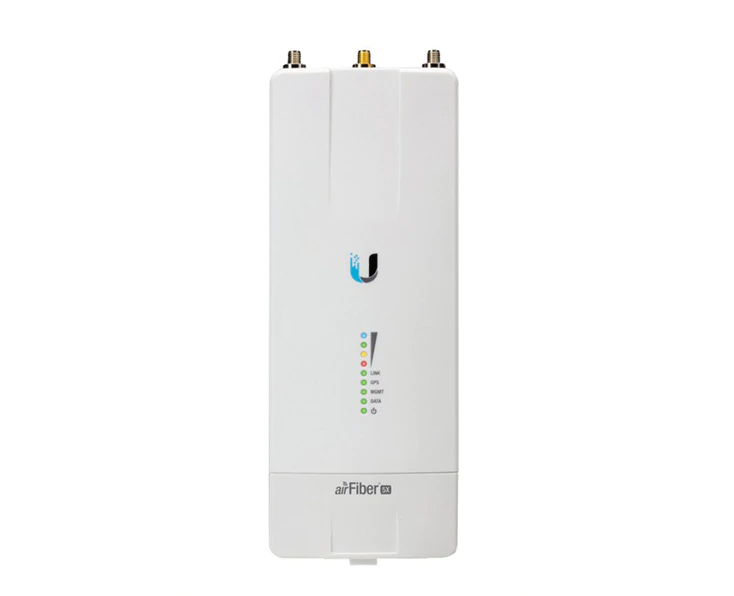

Ubiquiti airFiber AF-5X-US 5GHz Carrier Backhaul Radio

Ubiquiti airFiber AF-5X-US 5GHz Carrier Backhaul Radio Ubiquiti Networks AF-5X is a 5GHz Carrier Backhaul Radio serves a wide range of frequencies. It is designed to be compatible with a variety of Ubiquiti antennasoffering gain of 23 to 34 dBi. The device also allows users to customize backhaul links or upgrade existing PtP links. The device features an industry-leading 10.6 bps/Hz spectral efficiency, covering the entire 5 GHz spectrum with one radio, and delivering up to 500 Mbps real throughput and 200 km range. Ubiquiti airFiber AF-5X covers the entire, license-free, 5 GHz spectrum and includes a DFS approval. It can be used anywhere around the world. The airFiber AF-5X comes with GPS Antenna Mount, External GPS Antenna, Metal Strap, Cable Ties (2), airFiber PoE Adapter with Mounting Bracket (24V, 1A) and a Power Cord. Installation instructions provided in the quick start guide (included), explains how to install the Ubiquiti Networks AF-5X and set up an airFiber link, access and use the airFiber Configuration Interface. Key Features of the Ubiquiti Networks AF-5X-US Operation in Unlicensed Bands: Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations virtually anywhere within the radio band to avoid local interference Low Latency with HDD Technology: Provides the highest TDD throughput available and is engineered with Hybrid Division Duplexing (HDD) technology GPS Synchronization: Enables the concurrency of TX and RX frames TO co-locate the AF-5X radios and enhance the overall performance of backhaul links Deployment Flexibility: Compact form factor allows it to fit into the radio mount of Ubiquiti antennas Ubiquiti Airfiber Model Comparison airFiber AF-5 (US) airFiber AF-5U airFiber AF-24 (US) airFiber AF-24-HD (US) airFiber AF-5X (US) Frequency Mid‑Band 5 GHz High-Band 5 GHz 24 GHz 24 GHz 5 GHz Throughput 1.2 Gbps 1.2 Gbps 1.4 Gbps 2 Gbps 500 Mbps Range 100 km 100 km 13 km 20 km 200 km SKU: AF-5X-US Categories: Network Accessories, P2P radio, Ubiquiti
