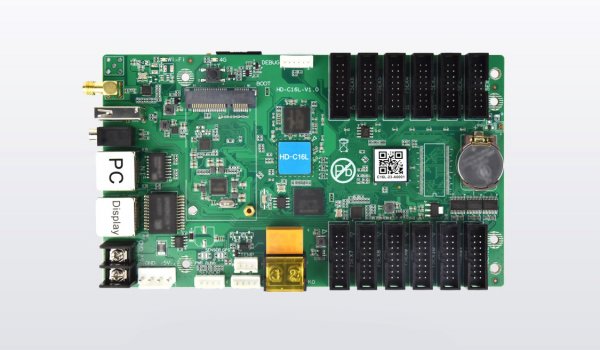

HuiDu HD-C16L LED display asynchronous control system

HuiDu HD-C16L LED display asynchronous control system Features：enter: 1. Supports 1 100M communication network port, used for debugging parameters, sending programs and accessing the Internet; 2. Supports 1 USB communication interface, which can be used to update programs and expand capacity; 3. Supports 1 dedicated interface for temperature sensor, 1 dedicated interface for GPS sensor and 1 universal sensor input interface.Output: 1. The maximum control range is 650,000 pixels, a single card can load 20W pixels, and a cascade can load 65W pixels; the widest discount supports 8192 pixels Pixels (width>1920 triggers discount), supports up to 1920 pixels; 2. Equipped with 1 Gigabit output network port as standard, which can be directly cascaded to the HD-R series receiving card to control the display; 3. Onboard 12 HUB75E interfaces; 4. 1 channel TRS 3.5mm standard two-channel audio output.Function: 1. Comes standard with 2.4GHz Wi-Fi and supports mobile APP wireless control (supports Wi-Fi-AP, Wi-Fi-STA mode); 2. Onboard 1-way relay can remotely control the power supply; 3. Supports 2-channel video window playback (up to 2-channel 1080P); 4. Support 4G access to Xiaohui Cloud platform to realize remote machine management on the Internet (optional); 5. Support UART communication; 6. Supports 1 channel RS-232 or RS-485 communication (optional).HuiDu HD-C16L LED display asynchronous control system pictures： Download Specification： HuiDu HD-C16L LED display asynchronous control system Specification（Chinese）HD-C16L LED display asynchronous control system Specification.pdf
