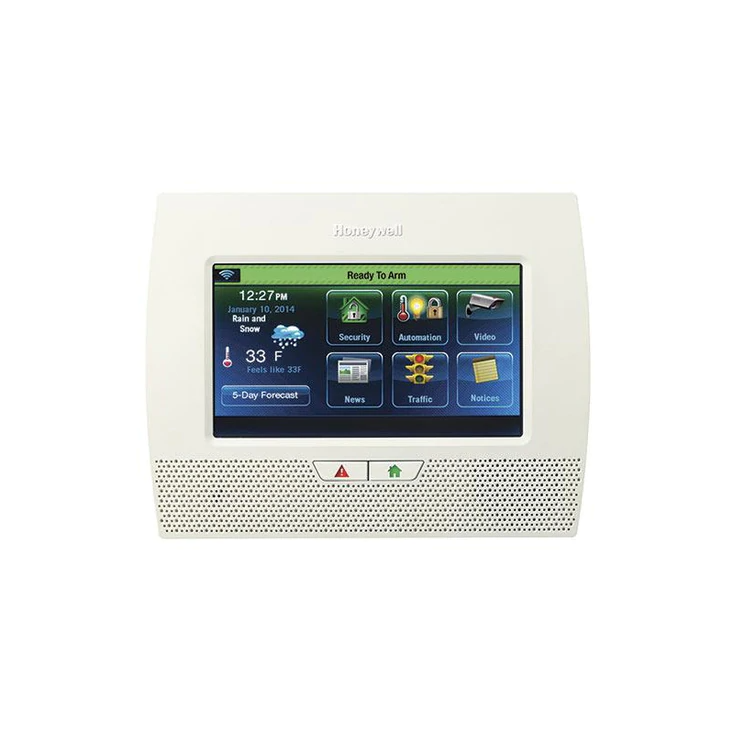

Honeywell L7000 Home LYNX Touch 7000 Control System

System Features 7″ color graphic touchscreen– Resolution 800 x 480 pixels– 16.7 million colors– Intuitive easy-to-use touchscreen interface– Easy to understand icons– Menu driven navigation– Quick, accurate programming– Two dedicated keys for easy access to the home screen and emergency functions On-premises video viewing– Integrated video: System supports up to four cameras, which can be displayed individually or in a quad configuration on the touchscreen. Works with compatible Resideo Total Connect Video products only (iPCAM-PT, iPCAM-WO, iPCAM-WI2/B, ACU). Wi-Fi support– Alarm communication to AlarmNet® and lifestyle messaging via the user’s Internet connection– Two-way voice over Wi-Fi Integrated Z-Wave provides control and integration of:– Thermostats– Water valves– Door locks– Sirens– Lighting– Scenes, schedules and rules– Local, automatic and remote control via Resideo Total Connect Push/Pull content through Resideo Total Connect– Weather available in Fahrenheit or Celsius (one day or five day forecasts)– Emergency alerts (tornadoes) – requires Resideo Total Connect with Information Services Package– Dealer/Central station messages (payments due, sales opportunities, community news)– End-user requests for sales or service Advanced Protection Logic™ technology– With APL enabled, the alarm can be reported even if the system is tampered with during the entry and communications delay times. APL can be selected when using a Honeywell GSM, CDMA* or IP communicator. Voice announcement of system and zone status Family message center (for user recorded messages) Works with Resideo Total Connect– Remote control of security, garage doors and Z-Wave devices– Selected event notifications Voice chime by zone 10 selectable chime tones Automatic stay arming 48 user codes (Installer, Master, plus 46 Secondary, including Duress and Guest) Three panic functions Wall or desk mount Viewable event log stores up to 256 events Exit error feature (detects difference between an actual alarm and exit alarm caused by leaving a door open after the exit delay expires) Case tamper RF jam detection Quick Exit feature provides users with an exit delay after arming their system Night Stay and Silent Exit modes Hinged cover for easy installation Real-time clock display Garage Door Function– Up to four garage doors per system– Unique garage door icon– View and monitor garage door status– Auto-secure feature– Remote notification via Resideo Total Connect– Garage door control*– Automatically control door via scenes, rules and schedules– Locally open/close garage door from touchscreen– Remotely open/close garage door via Resideo Total Connect Zones and Devices One hardwired zone Wireless zones – 80 programmable plus 24 dedicated to keyfobs Supports wireless bidirectional keypads Internal GSM or CDMA radio option Wi-Fi module option ILP5 Internet module option Programmable trigger output *CDMA is available in USA only.**Requires 5877GDPK, consisting of the 5877 Relay Receiver and Z-Wave Strobe/Sounder. Not compatible with certain garage doors and garage door openers. Garage door control must have working entrapment protection. See installation instructions for details. Integrated Z-Wave® Support Up to four thermostats (HVAC system or battery powered) with 1°F and 0.5° C set points Six door locks– Jammed locks reported to Resideo Total Connect Remote Services 40 devices (lights, switches and lamp modules) 20 scenes 20 rules (event-based actions) 20 schedules (time-based actions) Sunrise/sunset lighting control Randomized lighting control Wi-Fi® IEEE 802.11 B/G/N radio Supports alarm reportingv Supports two-way voice over GSM, CDMA or Wi-Fi Communications Broadband only – GSM, CDMA, Wi-Fi or IP GSM radio – protocol supports AT&T and Rogers™ networks CDMA radio – protocol supports Verizon® network ADEMCO® Contact ID Reporting (four digit account numbers) SIA Format Reporting Internet central station communication with L5100-WIFI or ILP5 module GSM or CDMA cellular central station communication with internal GSM or CDMA radio Selection for primary communication path when using dual paths Touch activated radio registration Radio signal strength display Two-way voice communication over IP/Wi-Fi, GSM or CDMA Resideo Total Connect ready Alarm Output Built-in 85 dB sounder with voice siren Steady output for burglary/panic Temporal pulse output for fire and carbon monoxide alarms Long range radio/audio alarm verification Programming Options stored in EEROM Can be uploaded, downloaded or controlled via IBM-compatible computer using Compass Downloader software and GSM, CDMA, Wi-Fi or IP communications module Intuitive programming interface reduces time and mistakes Programming options selected from allowable list Contextual options, defaults and pre-fills for faster set-up Listings UL 985, UL 1023, UL 1635 CAN/ULC-S545, CAN/ULC- Subject-C1023 ANSI/SIA CP-01-2010 System Power Primary power: plug-in power supply, 110VAC to 9VDC, 2.7A output 300-04705V1 or 300-04065V1 (300-04063V1 in Canada) Four or 24-hour backup battery: rechargeable nickel-metal hydride battery pack rated at 7.2Vdc Operating temperature: 32°F – 122°F (0°C – 50°C ) Dimensions (approx)7.5″ H x 9.5″ W x 2.0″ D (19.1cm H x 24.1cm W x 5.1cm D) Part No. Description L7000 LYNX Touch 7000 Control System L7000-CN LYNX Touch Control System with English/ French Languages (Canada) L7000-24 LYNX Touch with 24-hour Battery L5100-WIFI Wi-Fi IP Communication Module for L7000 (can be used with internal GSM radio) L5100-ZWAVE Z-Wave® Control Module for L7000 L7000DM Desk Mount for LYNX Touch CDMA-L57 Internal CDMA Radio with Two-way Voice Support 3GL Internal GSM Radio with Two-way Voice Support 3GLC Internal GSM Radio with Two-way Voice Support (Canada) ILP5 Internal Internet Communicator (cannot be used with internal GSM radio) LT-CABLE LYNX Family Power Cord LYNXRCHKIT-SHA 24-hour Backup Battery for L7000 and Internal GSM Radio LYNXRCHKIT-SC Four-hour Backup Battery for L7000 and Internal GSM Radio 5877GDPK Relay Receiver and Siren/Strobe (includes 5877 Relay Receiver and Z-Wave Strobe/Sounder) 5822T Tilt Sensor Transmitter (for garage door status monitoring; works locally and with Resideo Total Connect) ACU Wired/Wireless Analog Converter Unit IPCAM-WL Wired/Wireless Indoor Low-Light IP Camera IPCAM-PT2A Wired/Wireless IP Camera with Pan/ Tilt Ability IPCAM-WO Wired/Wireless Color Outdoor IP Camera
