$37.36
$69.86

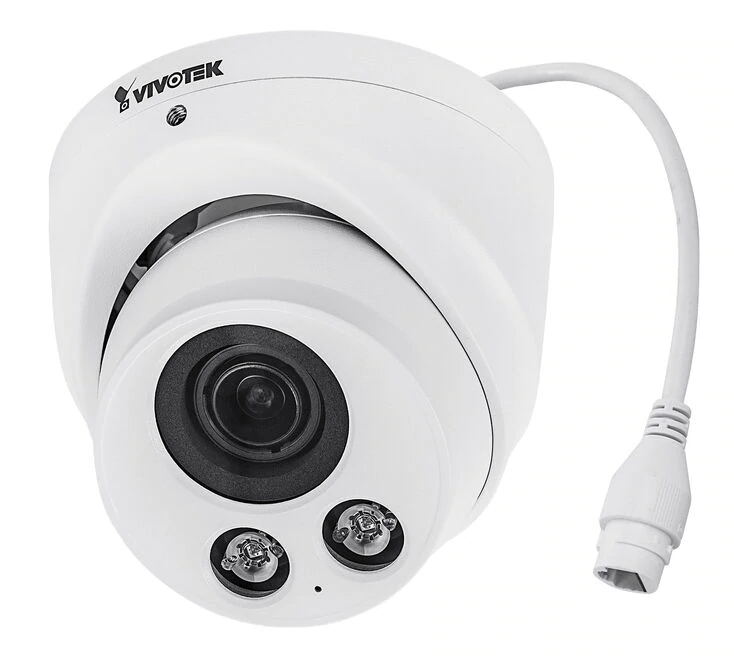

Specifications Technical Specifications System Information Model IT9388-HT CPU Multimedia SoC (System-on-Chip) Flash 128MB RAM 512MB Camera Features Image Sensor 1/2.7″ Progressive CMOS Max. Resolution 2560×1920 (5MP) Lens Type Vari-focal, Remote Focus Focal Length f = 2.8~ 12 mm Aperture F1.4 ~ F2.8 Auto-iris Fixed-iris Field of View 30° ~ 88° (Horizontal)23° ~ 65° (Vertical)38° ~ 115° (Diagonal) Shutter Time 1/5 sec. to 1/32,000 sec. WDR Technology WDR Pro Day/Night Yes Removable IR-cut Filter Yes IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 Minimum Illumination 0.035 Lux @ F1.4 (Color)<0.005 Lux @ F1.4 (B/W)0 Lux with IR illumination on Pan Range 360° Tilt Range 70° Rotation Range 360° Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) On-board Storage Slot type: MicroSD/SDHC/SDXC card slotSeamless Recording Video Video Compression H.265, H.264, MJPEG Maximum Frame Rate 20 fps @ 2560×1920 Maximum Streams 3 simultaneous streams S/N Ratio 61 dB Dynamic Range 120 dB Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation Audio Audio Capability One-way Audio Audio Compression G.711, G.726 Audio Interface Built-in microphone Effective Range 5 meters Network Users Live viewing for up to 10 clients Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. ONVIF Supported, specification available at www.onvif.org Solution Integration Video Motion Detection Five-window video motion detection VADP Package Trend Micro IoT Security, Stratocast Alarm and Event Alarm Triggers Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) Alarm Events Event notification via email, HTTP, FTP, NAS server, SD cardFile upload via email, HTTP, FTP, NAS server, SD card General Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection*1 LED Indicator System power and status indicator Power Input IEEE 802.3af PoE Class 0 Power Consumption Max. 9.8 W (IR on)Max. 6.29 W (IR off) Dimensions Ø 120 x 90.5 mm Weight 625 g Casing IP66, IK10(Metal Housing) Safety Certifications CE, FCC Class B, UL, LVD, VCCI, C-Tick Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Humidity 90% Warranty 24 Months System Requirements Operating System Microsoft Windows 8/7Mac 10.12 (Chrome only) Web Browser Chrome 58.0 or aboveInternet Explorer 10/11 Other Players VLC: 1.1.11 or aboveQuickTime: 7 or above Included Accessories Others Quick installation guide, alignment sticker, screw pack, cable gland
