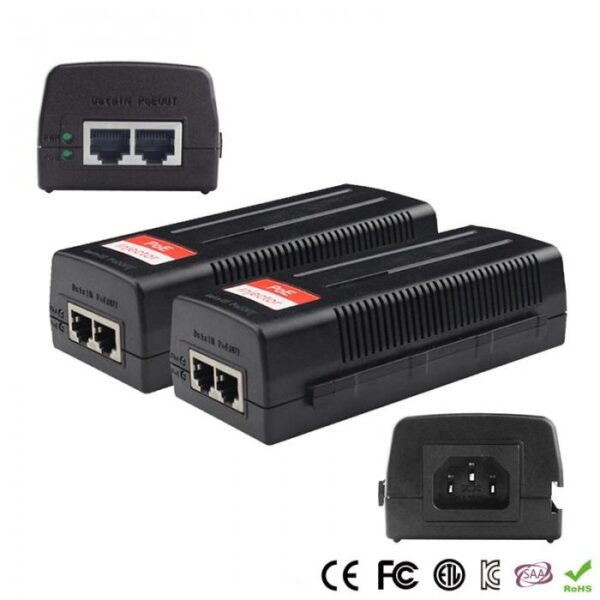

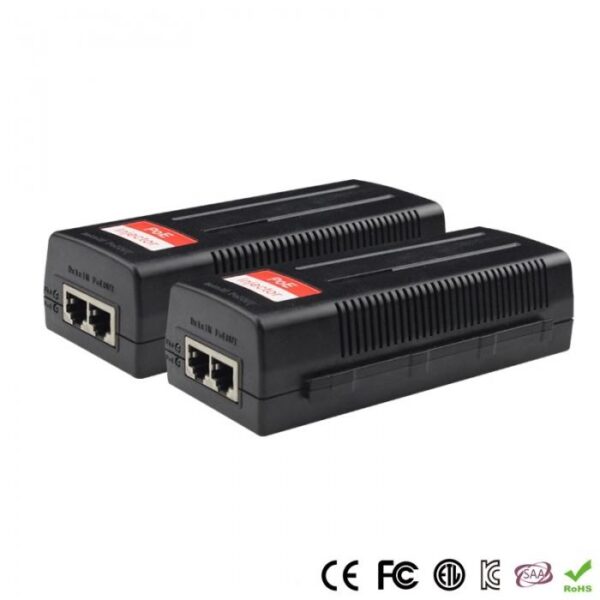

Gigabit 1 Channel PoE injector, 30W Description The PoE-M911 is a single port Mid-spans offer a compact and cost effective, fully IEEE 802.3af compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations. Features: • Full IEEE 802.3af Compliant • Up to 30W of Power on 2-pairs • Auto-detect of POE IEEE 802.3at equipment • Supports 10/100/1000M Base-T applications • LED indicators power input indication • Distance up to 100 meters • Internal AC/DC converter – no need for external power brick • Easy plug-and-play installation • Surge protection • EMI standards complies with FCC, CE class B No. of Ports 1 Pass Through Data Rates 10/100/1000 Mbps Power over Ethernet Output Pin Assignment and Polarity:4/5 ( ), 7/8 (-)Output Power Voltage: 55VdcUser Port Power: 20W Input Power Requirements AC Input Voltage: 100 to 240 Vac AC Input Current: 0.2A 100-240 Vac AC Frequency: 50 to 60 Hz Dimensions 150mmx65mmx38mm Weight Indicators System Indicator: AC PowerUser Indicator: Channel Power Connectors Shielded RJ-45, EIA 568A and 568B Environmental Conditions Operating Ambient Temperature:-10 to 45?Operating Humidity:Maximum 90%, Non-condensingStorage Temperature:-20 to 70?Storage Humidity:Maximum 95%, Non-condensing Reliability MTBF: 100,000 hrs. @25? Regulatory Compliance IEEE 802.3af (PoE), RoHS Compliant, CE, FCC Electromagnetic Emission & Immunity FCC Part15, Class BEN 55022 Class B (Emissions)EN 55024 (Immunity), VCCI Surge Protection AC port: 6kVRJ45 port: 4kV Safety Approvals UL/cUL Per EN 6095-1GS Mark Per EN 60950-1 SKU: POE-M911-30 Categories: Accessories, Network Accessories, POE Switch
