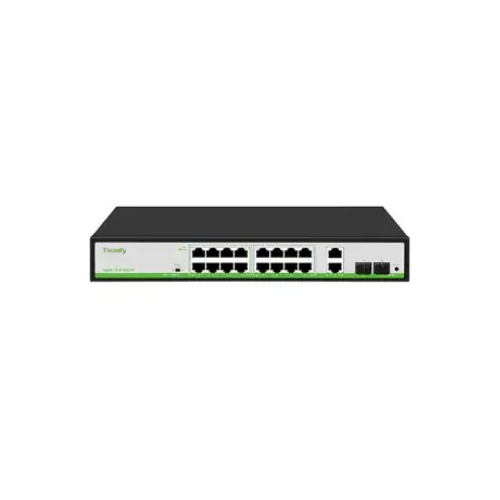

Tiandy TC-P3S020 16CH Giga PoE Switch with Giga Uplink & SFP Ports

Tiandy 16CH Giga PoE Switch TC-P3S020 (G/1622/AT/180) delivers enterprise-grade network performance specifically designed for IP camera installations and security surveillance systems across Bangladesh. This high-capacity switch combines gigabit connectivity with Power over Ethernet technology, eliminating the need for separate power cables while ensuring stable data transmission for your entire security infrastructure. Built to handle demanding surveillance environments, this switch provides seamless integration with Tiandy camera systems and supports multiple third-party IP cameras. Whether you’re securing a commercial building in Dhaka, monitoring a factory in Chittagong, or protecting a residential complex in Sylhet, this PoE switch offers the reliability and performance your security system demands. Key Features Intelligent Power Management System The TC-P3S020 features advanced PoE power distribution with 180W total power budget, automatically detecting and delivering the precise power requirements for each connected device. This intelligent allocation prevents overload situations while maximizing efficiency across all 16 ports. Gigabit Network Performance All 16 PoE ports support gigabit Ethernet speeds, ensuring smooth transmission of high-definition video streams without lag or packet loss. The dedicated gigabit uplink ports provide high-speed backbone connectivity to your main network infrastructure. Flexible Uplink Connectivity Options Equipped with both standard gigabit uplink and SFP (Small Form-factor Pluggable) ports, this switch accommodates various network topologies. The SFP port enables fiber optic connections for long-distance transmission, perfect for connecting buildings or remote locations. IEEE 802.3af/at Compliance Full compliance with IEEE 802.3af/at standards ensures compatibility with a wide range of powered devices including IP cameras, wireless access points, and VoIP phones. This standardization guarantees reliable operation across different equipment manufacturers. Robust Metal Housing for Bangladesh Climate The durable metal chassis provides excellent heat dissipation and protection against environmental factors common in Bangladesh, including high humidity and temperature fluctuations. The fanless design ensures silent operation while maintaining optimal thermal management. Tiandy TC-P3S020 Technical Specifications Specification Details Model TC-P3S020 (G/1622/AT/180) PoE Ports 16 x 10/100/1000Mbps RJ45 ports with PoE Uplink Ports 2 x Gigabit RJ45 uplink ports 2 x SFP slots PoE Standard IEEE 802.3af/at compliant Total Power Budget 180W maximum Per Port Power Up to 30W per port (802.3at) Switching Capacity 36 Gbps Forwarding Rate 26.78 Mpps MAC Address Table 8K entries Transmission Mode Store-and-forward Jumbo Frame Up to 9KB Operating Temperature -10°C to 50°C Storage Temperature -40°C to 70°C Humidity 10% to 90% non-condensing Power Supply AC 100-240V, 50/60Hz Housing Material Metal chassis Cooling System Fanless passive cooling Dimensions 440mm x 200mm x 44mm Mounting Desktop or rack-mountable (19-inch) Certifications CE, FCC, RoHS Ideal Applications in Bangladesh Commercial Security Installations Shopping centers, office buildings, and retail chains throughout Bangladesh benefit from centralized power and data management. A single switch powers and connects up to 16 IP cameras, reducing installation costs and simplifying maintenance. Industrial Facility Monitoring Manufacturing plants and warehouses require reliable surveillance across expansive areas. The gigabit throughput handles multiple high-resolution camera feeds simultaneously, while the robust construction withstands industrial environments. Educational Institutions Schools, colleges, and universities can deploy comprehensive security coverage across campus buildings. The SFP uplink capability allows fiber connections between distant buildings without signal degradation. Hospitality and Healthcare Hotels, hospitals, and clinics need uninterrupted surveillance systems. The intelligent power management ensures continuous operation, while the fanless design maintains quiet environments essential for patient comfort and guest experience. Residential Communities Apartment complexes and gated communities achieve complete perimeter security with centralized network management. The plug-and-play functionality simplifies installation for security integrators across Bangladesh. Why Choose Tiandy TC-P3S020 for Your Network Professional security integrators and system administrators across Bangladesh select this PoE switch because it eliminates common installation challenges. Traditional surveillance setups require separate power sources for each camera, creating complex wiring requirements and multiple potential failure points. This switch consolidates power delivery through the same Ethernet cables that carry data, cutting installation time significantly. The 180W power budget accommodates power-hungry PTZ cameras and high-performance IP cameras without requiring additional power supplies. When planning your surveillance network, this capacity means you can deploy professional-grade equipment without worrying about power limitations. Network stability remains critical for security applications. The store-and-forward transmission mode checks each data packet for errors before forwarding, preventing corrupted video streams. The 8K MAC address table and high switching capacity ensure your network handles peak traffic loads during critical recording periods. Installation and Setup Advantages Setting up the TC-P3S020 requires minimal technical expertise. The switch automatically detects PoE devices and begins power delivery without manual configuration. For integrators working on tight project timelines across Dhaka, Chittagong, or other cities in Bangladesh, this plug-and-play functionality accelerates deployment. The dual uplink configuration provides redundancy options. Connect both uplink ports for increased bandwidth, or configure one as a backup connection ensuring network availability even if the primary link fails. For installations requiring fiber connectivity to distant network cores, the SFP slots accept standard fiber modules without additional converters. Rack-mounting brackets allow professional integration into existing network cabinets, while the compact desktop form factor suits smaller installations. The LED indicators on each port provide instant visual feedback on connection status and PoE power delivery, simplifying troubleshooting. Long-term Value and Reliability Investment in quality network infrastructure pays dividends through reduced maintenance and extended service life. The fanless cooling system eliminates mechanical failure points common in active cooling solutions, while the metal housing provides superior electromagnetic interference shielding compared to plastic alternatives. Power efficiency features reduce operational costs over the switch’s lifetime. The intelligent PoE management only delivers the power each device requires, avoiding energy waste. For businesses monitoring electricity expenses in Bangladesh’s commercial environment, these efficiency gains accumulate into meaningful savings. The wide operating temperature range suits Bangladesh’s tropical climate, functioning reliably through hot summer months and monsoon humidity. The passive cooling design maintains stable operation without dust accumulation issues that plague fan-cooled switches in dusty environments. Read More Technical Support and Compatibility Tiandy’s established presence in the Bangladesh security market ensures local technical support and service availability. The switch integrates seamlessly with Tiandy camera systems while maintaining open standards compatibility for mixed-vendor installations. VLAN support allows network segmentation, isolating surveillance traffic from general business network traffic for enhanced security and performance. Quality of Service features prioritize video streams, ensuring consistent recording quality even during network congestion. The comprehensive certification portfolio including CE, FCC, and RoHS compliance demonstrates adherence to international quality and safety standards, providing confidence in product reliability and safety. Making the Right Choice for Your Security Infrastructure Selecting appropriate network equipment determines your surveillance system’s long-term performance and reliability. The Tiandy 16CH Giga PoE Switch delivers the power capacity, network throughput, and build quality required for professional security installations across Bangladesh. The combination of high port count, substantial power budget, and gigabit performance positions this switch as the backbone for medium to large surveillance deployments. Whether upgrading existing analog systems to IP or building new installations, the TC-P3S020 provides the infrastructure foundation your security investment deserves. For security integrators, facility managers, and business owners seeking reliable network solutions that simplify installation while delivering professional performance, this switch represents proven technology backed by Tiandy’s reputation in the surveillance industry. CCTV Camera Tiandy TC-P3S010 8CH Giga PoE Switch with Giga Uplink Ports
