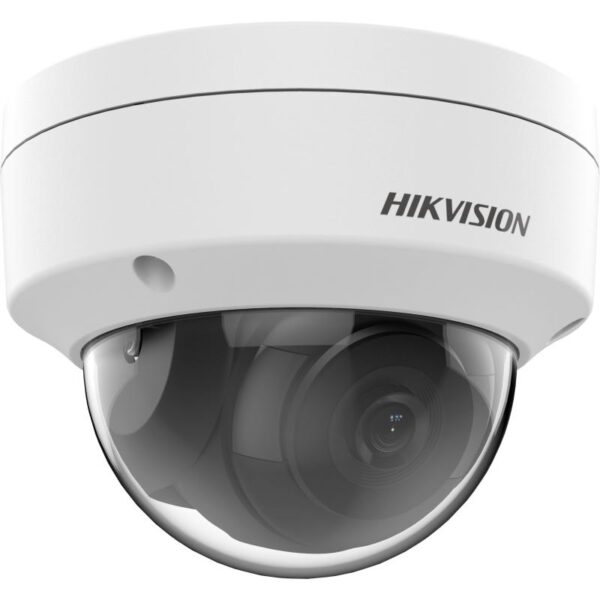

DS-2CD1143G0-I 4MP Fixed ...

Camera Specifications Overview Image Sensor Type: 1/3\” progressive scan CMOS Maximum Resolution: 2560 × 1440 Minimum Illumination: Color: 0.01 Lux @(F2.0, AGC ON) B/W: 0 Lux with IR Shutter Time Range: 1/3 s to 1/100,000 s Day & Night Functionality Type: IR cut filter Angle Adjustment Pan: 0° to 355° Tilt: 0° to 75° Lens Lens Type: Fixed focal lens (options: 2.8 mm and 4 mm) Focal Length & Field of View (FOV): 2.8 mm: Horizontal FOV: 98.0° Vertical FOV: 53.1° Diagonal FOV: 114.7° 4 mm: Horizontal FOV: 78.7° Vertical FOV: 43.1° Diagonal FOV: 92.3° Lens Mount: M12 Focus: Fixed Aperture: F2.0 Iris Type: Fixed Illuminator Supplement Light Type: IR Supplement Light Range: Up to 30 m IR Wavelength: 850 nm Smart Supplement Light: Yes Video Main Stream: 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Video Compression: Main Stream: H.265/H.264/H.264 /H.265 Sub-Stream: H.265/H.264/MJPEG Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Region of Interest (ROI): 1 fixed region for main stream Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live View: Up to 6 channels API: Open Network Video Interface, ISAPI User/Host: Up to 32 users (3 levels: administrator, operator, user) Client Software: iVMS-4200, Hik-Connect Web Browser Compatibility: Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0 , Firefox 52.0 , Edge 89 Local service: Chrome 57.0 , Firefox 52.0 , Edge 89 Image Settings Adjustable Settings: Saturation, brightness, contrast, sharpness, AGC, white balance (via client software or web browser) Day/Night Switch: Auto, Schedule, Day, Night Wide Dynamic Range (WDR): 120 dB Image Enhancement: BLC (Backlight Compensation), 3D DNR (Digital Noise Reduction) Interface Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port Event Management Basic Events: Motion detection, video tampering alarm, exception Linkage Options: Upload to FTP, notify surveillance center, send email General Specifications Power Supply: 12 VDC ± 25%, 0.4 A, max. 5 W (Ø5.5 mm coaxial power plug) PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W Material: Base: metal, cover: plastic Dimensions: Ø111 mm × 82.4 mm (Ø 4.4\” × 3.2\”) Package Dimensions: 134 mm × 134 mm × 108 mm (5.3\” × 5.3\” × 4.3\”) Weight: Approx. 360 g (0.8 lb.), with package weight approx. 560 g (1.2 lb.) Storage Conditions: Temperature: -30 °C to 60 °C (-22 °F to 140 °F) Humidity: 95% or less (non-condensing) Startup and Operating Conditions: Same as storage conditions Language Options: English, Ukrainian General Functions Features: Anti-banding, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval EMC Compliance: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (various standards); RCM; IC VoC; KC Safety Standards: UL, CB, CE-LVD, BIS Environmental Standards: CE-RoHS, WEEE, Reach Protection Rating: IP Rating: IP67 (IEC 60529-2013) IK Rating: IK10 (IEC 62262:2002) Summary This advanced surveillance camera features a high-resolution 1/3\” progressive scan CMOS sensor, excellent low-light performance, and versatile angle adjustments for optimal monitoring. With robust video compression and streaming capabilities, it supports various network protocols and provides flexible event management options. Its durable design, IP67 protection, and wide operational temperature range make it suitable for demanding environments, ensuring reliable performance for security applications.
