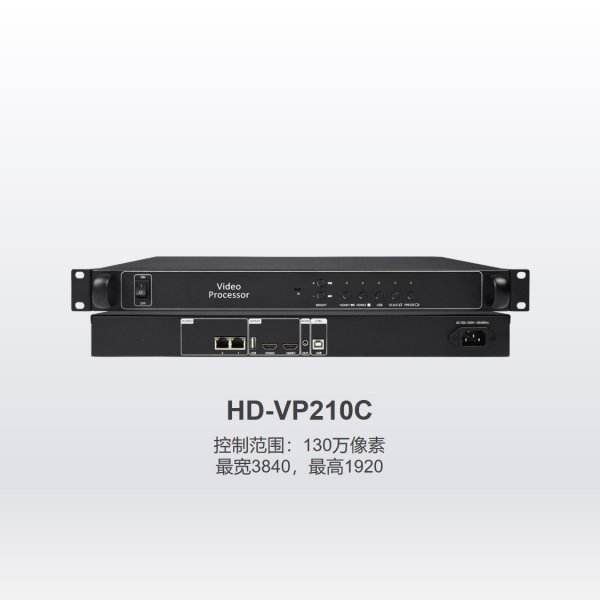

HUIDU HD-VP210C 3-in-1 LED Display Processor Controller

HUIDU HD-VP210C 3 In 1 LED Screen video processor video controller Features:1. Control range: 1.3 million pixels, maximum horizontal support 3840 pixels, vertical maximum support 1920 pixels; 2. Signal switching: support arbitrary switching of 2 channels of HDMI synchronous signals and 1 channel of USB signals; 3. USB playback: support direct playback of videos and pictures in various mainstream formats under the root directory of the U disk, the maximum support 1080P HD video playback; 4. Audio input/output: support 2 channels of HDMI audio input (choose one of the two to play), 1 channel of TRS 3.5mm standard dual soundchannel audio output; 5. Output network port: standard 2 Gigabit network ports, directly cascaded to the receiving card; 6. Brightness setting: support one-button adjustment of brightness without cumbersome operations; 7. Key lock: lock the key to prevent the abnormal display caused by misoperation; 8. Infrared remote control wireless control (optional): Support functions such as program switching and brightness setting.Connection display diagram:Download Specification:HHUIDU HD-VP210C video processor video controller Specification(Chinese) HD_VPX10C_VP210C-User-Manual.pdf
