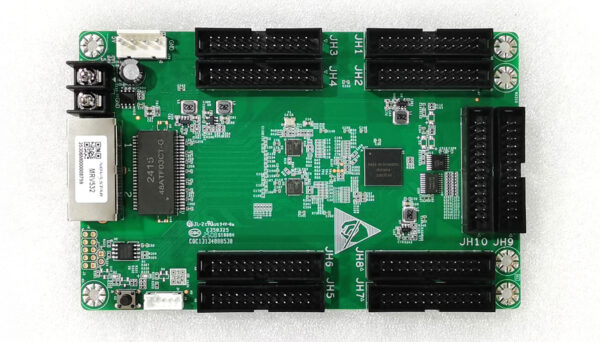

Introduction:The MRV532 is a receiving card designed for PWM driver ICs by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). For 8bit video sources, a single card supports resolutions up to 512×512@60Hz. For 10bit or 12bit video sources, a single card supports resolutions up to 512×
[email protected] MRV532 also supports various functions such as Seam Correction, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Low Latency, 3D, and 90° Image Rotation. As a result, it can significantly improve the display effect and user experience.The MRV532 uses 10 standard HUB320F connectors to ensure highly stable communication, supporting up to 40 groups of RGB real pixel data, 40 groups of 3-color sub-pixel data, or 30 groups of 4-color sub-pixel data.Features：1.Pixel Level Brightness and Chroma CalibrationWork with NovaStar’s high-precision calibration system to calibrate the brightness and chroma of each pixel, effectively eliminating differences and enabling high consistency for both brightness and chroma.2.Seam Correction with Mobile AppUse the mobile app to automatically or manually correct the different brightness of seams caused by splicing of modules or cabinets to improve the visual experience. (Work with the TU series)3.Quick Adjustment of Dark or Bright LinesThe different brightness of seams caused by splicing of modules or cabinets can be corrected to improve the visual experience. The correction is easy and takes effect immediately.4.Low LatencyThe latency of video source on the receiving card end can be reduced to 1 frame (only when using modules with driver IC with built-in RAM).5.3DWork with the controller that supports 3D function to enable 3D output.6.90°Image RotationThe display image can be rotated in multiples of 90°(0°/90°/180°/270°)Maximum Resolution512×512@60Hz (8bit video sources)512×512@60Hz (8bit video sources)Electrical SpecificationsInput voltageDC 3.8 V to 5.5 VRated current0.5 ARated power consumption2.5 WOperating EnvironmentTemperature–20°C to 70°CHumidity10% RH to 90% RH, non-condensingStorage EnvironmentTemperature–25°C to 125°CHumidity0% RH to 95% RH, non-condensingPhysical SpecificationsDimensions146.0 mm × 91.5 mm × 19.2 mmNet weight99.5 gNote: It is the weight of a single receiving card onlyPacking InformationPacking specificationsAn antistatic bag and anti-collision foam are provided for each receiving card.Each packing box contains 100 receiving cards.Packing box dimensions625.0 mm × 180.0 mm × 470.0 mm Download Specification:Novastar MRV532 LED Screen Receiving Card Specification搜索复制
