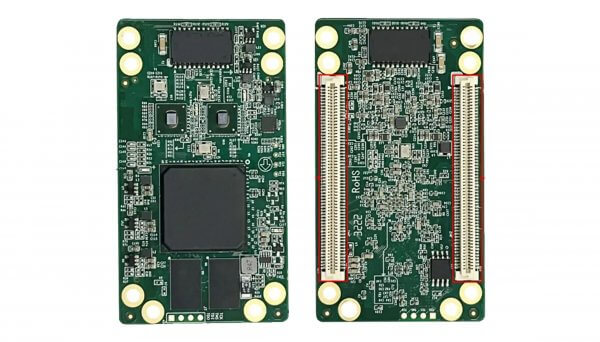

OverviewHC5 is a 5G high-end receiving card designed for the fine-pitch screens in high-end fixed display and flexible rental scenarios. lt adopts high-density connector interface and its network signal transmission rate is 5Gb/s, Compared with the conventional Gigabit Ethernetsystem, it effectively supports features such as high frame rateand deep color depth, dramatically increases the load capacity through one single network cable,which in turn, increases the number of cabinet cascades, simplifying cabling between the LED screen and the controller. The benefit of the wiring promotes solid LED cabinet structural design and improves overall stability.Features Display effect 8bit/10bit/12bit video source input. HDR. Full gamma independent adjustment. Infi-bit color extension. Color temperature adjustment. Grayscale refinement. Better gray at low brightness. Calibration Low-grayscale calibration. Multi-layer calibration. High precise per-pixel calibration in brightness and chromaticity Easy maintenance Seam correction. Highlight and OSD. Color gamut adjustment. Screen rotation. Prestore picture. Firmware upgrade without power restart. 5Gb/s high-capacity and high-speed data transmission. Up to 16 intelligent modules. Quick firmware upgrade and calibration coefficients download. Cabinet temperature, humidity,voltageand power monitoring. Stable and reliable Loop redundancy. Dual receiving card hot backup. PSU redundancy. Configuration parameter redundancy. Calibration coefficient redundancy. Firmware redundancy and readback. Ethernet cable status monitoring. 7x24h uninterrupted work.Download Specification: Colorlight HC5 LED Display Screen Receiving Card Specification
