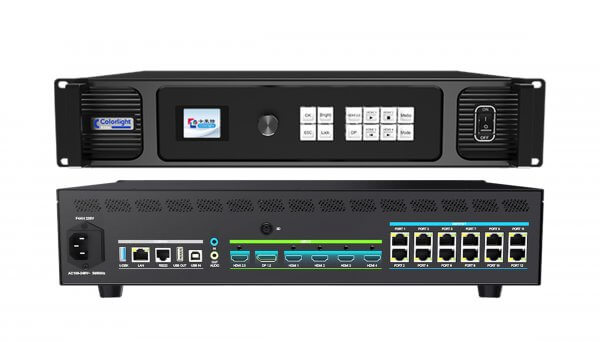

Colorlight X12m Ultra-4K LED Display Video Controller

OverviewX12m is an Ultra-4K LED video controller with powerful video signal input and processing capabilities. It supports both 4K and 2K video signal inputs and Ethernet port output mode. With a load capacity of 7.86 million pixels, the device is designed to meet diverse customer needs across various video display applications. Thanks to its versatile and practical features, X12m offers an ideal solution for flexible screen control and high-quality image display.Features Input Maximum resolution: 4096×2160@60Hz 2×4K input ports: 1xDP1.2, 1xHDMI2.0 4×2K input ports: 4×HDMI1.4 1x USB port  Output Maximum load capacity: 7.86 million pixels 12xGigabit Ethernet ports  Audio 1× independent audio input. 1× independent audio output. Supports HDMI & DP audio decoding and output.  Functions Supports up to 6 windows at once, each with 1 layer, and allows for overlapping layers -1x4K input: simultaneously supports 4 HD inputs for up to 5 windows -2x4K inputs: supports 2 windows only Navigate and resize windows, with a minimum window size of 64×64 Free cropping and seamless switching of video signals; crop box adjustable, with a minimum size of 64 x 64 Precise color management, allowing for color gamut adjustment (Works with receiving cards supporting this function) Genlock synchronization supports locking to internal VSync or input signal; automatic Genlock (according to layers) is also available Supports brightness and precise color temperature adjustment Supports 3D (Optional) Better grayscale at low brightness, effectively preventing grayscale loss in low brightness conditions Supports saving and loading of 128 preset scenes Supports playback and upgrading via a USB drive Supports Bluetooth remote control (Optional)  Control Supports control and cascading via USB ports Supports RS232 Protocol control Supports LAN port control Supports control via mobile appsDownload Specification: Colorlight X12m LED Display Video Controller Specification
