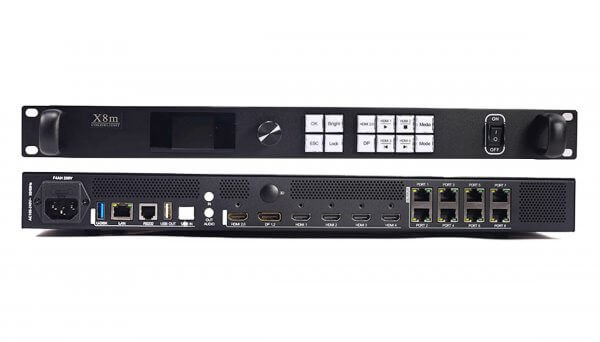

Colorlight X8m Ultra-4K LED Display Video Controller

OverviewX8m is an Ultra-4K LED video controller with powerful video signal input and processing abilities. It is so versatile, offering flexible screen control and high-quality image display portfolios. The device supports 4K and 2K video signal inputs and LAN port output mode. A load capacity of up to 5.24 million pixels creates a dynamic viewing experience that stays with you.Features Input & Video Processing 4K Inputs (Up to 4096×2160@60Hz): 1× DP 1.2 (supports custom resolutions up to 8192×1080@60Hz) 1× HDMI 2.0 (backward compatible with HDMI 1.4/1.3) 2K Inputs (4× HDMI 1.4): Max 1920×1200@60Hz per port Multi-Window Support Up to 6 independent windows (layered overlap) Real-time cropping & resizing (min. 64×64 window size) Genlock Synchronization: Supports internal V-Sync, auto-genlock, and 3D sync (optional) 3. Output & Load Capacity 8× Gigabit Ethernet Ports: Total Load Capacity: 5.24M pixels (8-bit @60Hz) Per Port: Up to 655K pixels (8-bit @60Hz) Max Resolution: 16,384×8,192 pixels Redundancy Support & 100m CAT5e cable compatibility Audio & Control Audio I/O: 1× 3.5mm audio input (supports HDMI/DP audio decoding) 1× 3.5mm audio output Control Interfaces: USB (for PC control/cascading) RS232 (RJ11) for central control LAN for IP-based management Mobile app support Additional Features Color & Brightness Management: 18-bit grayscale, custom color gamut Adjustable brightness/color temperature USB Playback: Supports NTFS/FAT32/exFAT drives Video Formats: MP4, AVI, MKV (H.264/H.265), etc. (up to 4K@60Hz) Image Formats: JPEG, PNG, BMP (up to 4096×2160) 128 Preset Scenes for quick switching System Requirements (PC Control Software) OS: Windows Server 2016 CPU: Dual-core 2.5GHz RAM: 8GB | SSD: 150GB  Key Advantages 4K/2K Multi-Input – Flexible signal switching (DP 5× HDMI) Massive Pixel Processing – 5.24M pixels total load for large LED walls Multi-Window & Layer – Supports 6 overlapping windows with real-time edits Low-Latency Genlock – Frame-accurate synchronization for live eventsDownload Specification: Colorlight X8m LED Display Video Controller Specification
