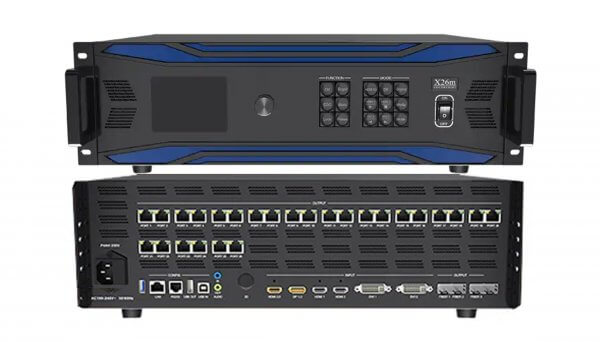

OverviewX26m is an LED video controller with powerful signal receiving and processing abilities, effectively meeting the needs of different scenarios. It supports 4K and 2K video signal inputs, with a capacity of up to 17.03 million pixels, and features 2 types of output ports -Ethernet and optical fiber. In addition, the device boasts abundant practical functions that enable flexible screen control and high-quality image display, making it ideal for various applications.Features Input Maximum 4096×2160@60Hz. 4K input interface: 1× DP1.2, 1×HDMI2.0. 2K input interface: 2× HDMI1.4, 2× DVI. 1× U-disk interface. Output Up to 17.03 million pixels load capacity. 26× Gigabit Ethernet ports and 3× 10 Gigabit optical fiber ports (Choose either Ethernet port or optical port). Audio 1×3.5mm independent input. 1×3.5mm independent output. Supports HDMI & DP audio decoding and output. Functions Up to 6 windows, supports window overlapping. Window roaming and free scaling, with a minimum window size of 64×64. Free cropping and seamless switching of video signals, crop box adjustable, with a minimum window size of 64×64. Adjusting color gamut with Precise Color Management (Requires receiving card support.) Genlock synchronization, supporting locking internal vsync, input source, and automatic Genlock (according to layers). Supports brightness and precise color temperature adjustment. Supports 3D display (Accessories need to be purchased separately.) Improving grayscale performance with Better Grayscale at Low Brightness. Easy saving and loading of 128 preset scenes. Supports playback and upgrade via USB drive. Supports bluetooth remote controller (Optional). Virtual pixel, support 3x virtual and 4x virtual. Support subtitles. Control USB interfaces for control and cascading. RS232 protocol control. Supports LAN port control. Supports control via App.Download Specification: Colorlight X26m LED Display Video Controller Specification
